Support for Pipe-Type Cables with Non-Conductive Enclosures

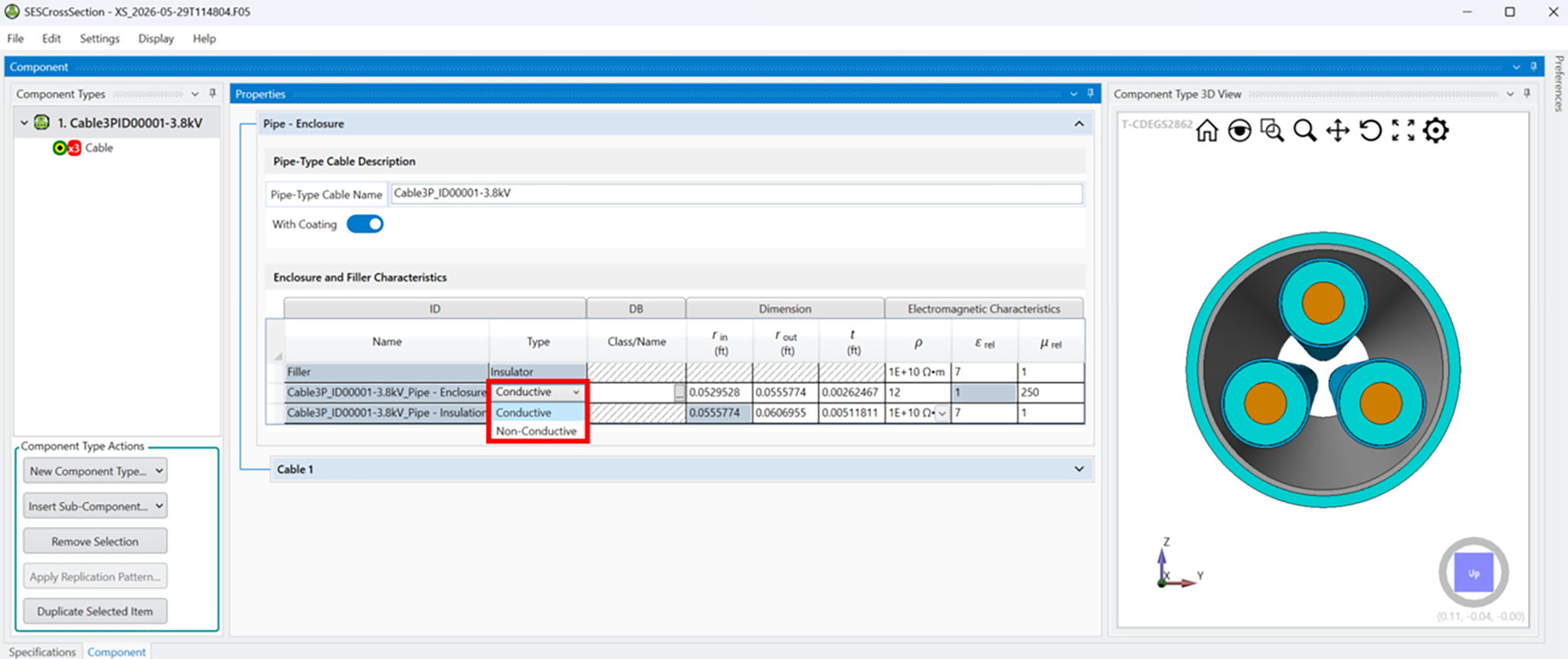

In the pipe-type cable definition framework, the enclosure type can be non-conductive, in addition to the previously supported conductive type. This new capability is introduced in the HIFREQ/MALZ and Right-of-Way Configuration Modes of SESCrossSection, allowing definition of pipe-type cables with non-conductive enclosures in SESCAD-Release Candidate and Right-of-Way (ROWCAD), respectively.

Improved User-Interface

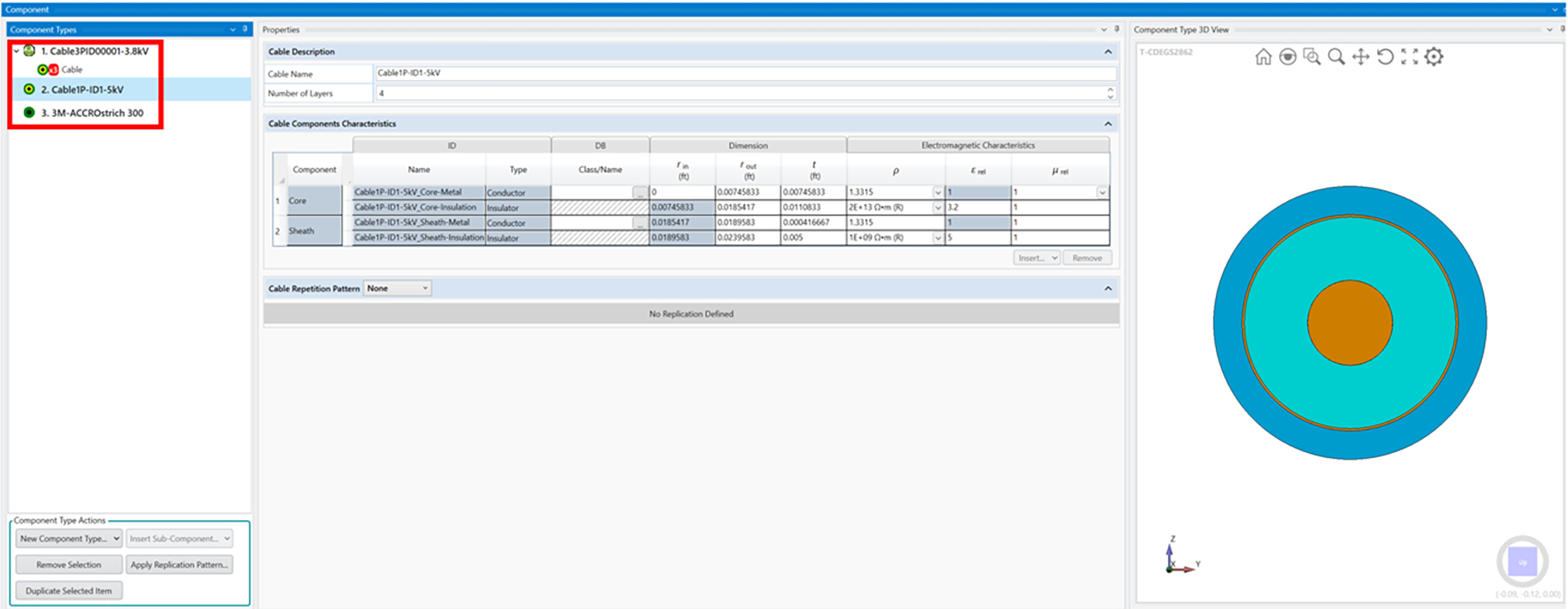

In the Component Types panel, the defined components are now numbered based on the order they are defined or imported from the database.

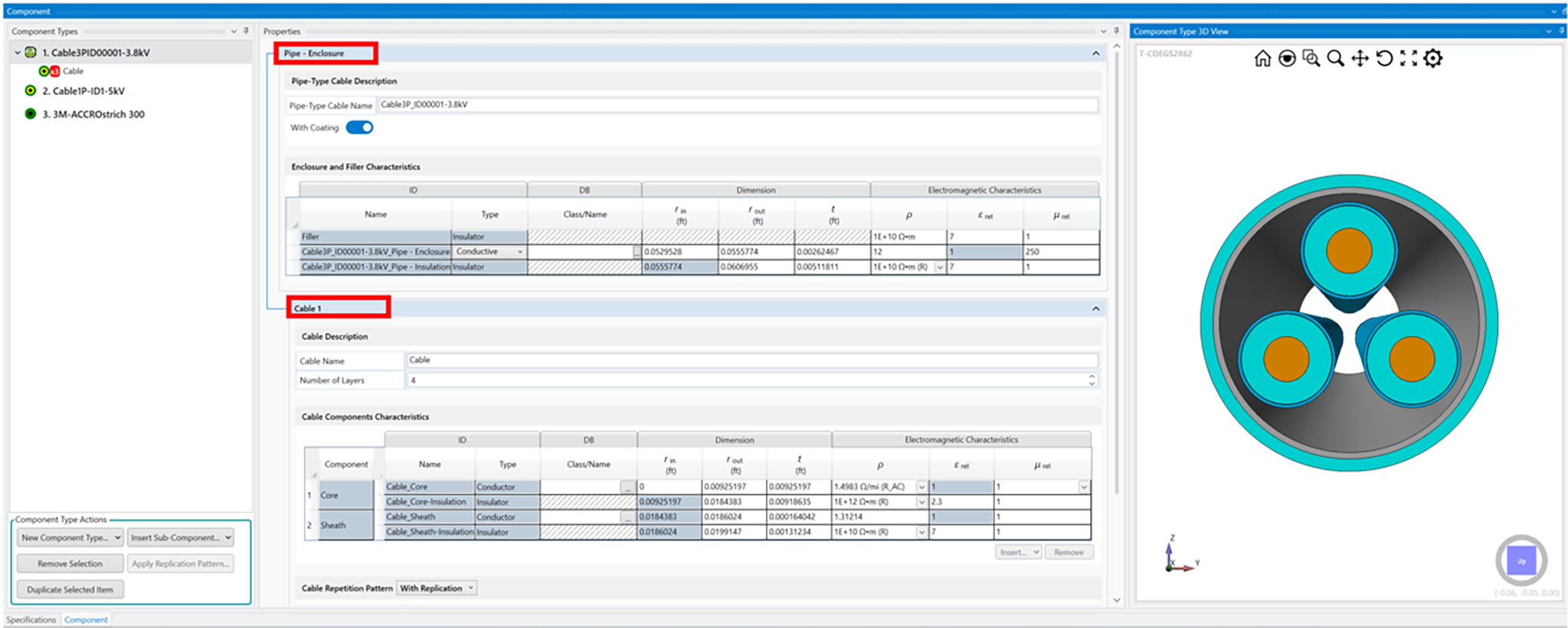

The Properties panel is improved for pipe-type and concentric cables. For pipe-type cables, when the pipe-type cable is selected in the Component Types panel, properties of the enclosure and the enclosed cables are displayed in dedicated expanders in the Properties panel.

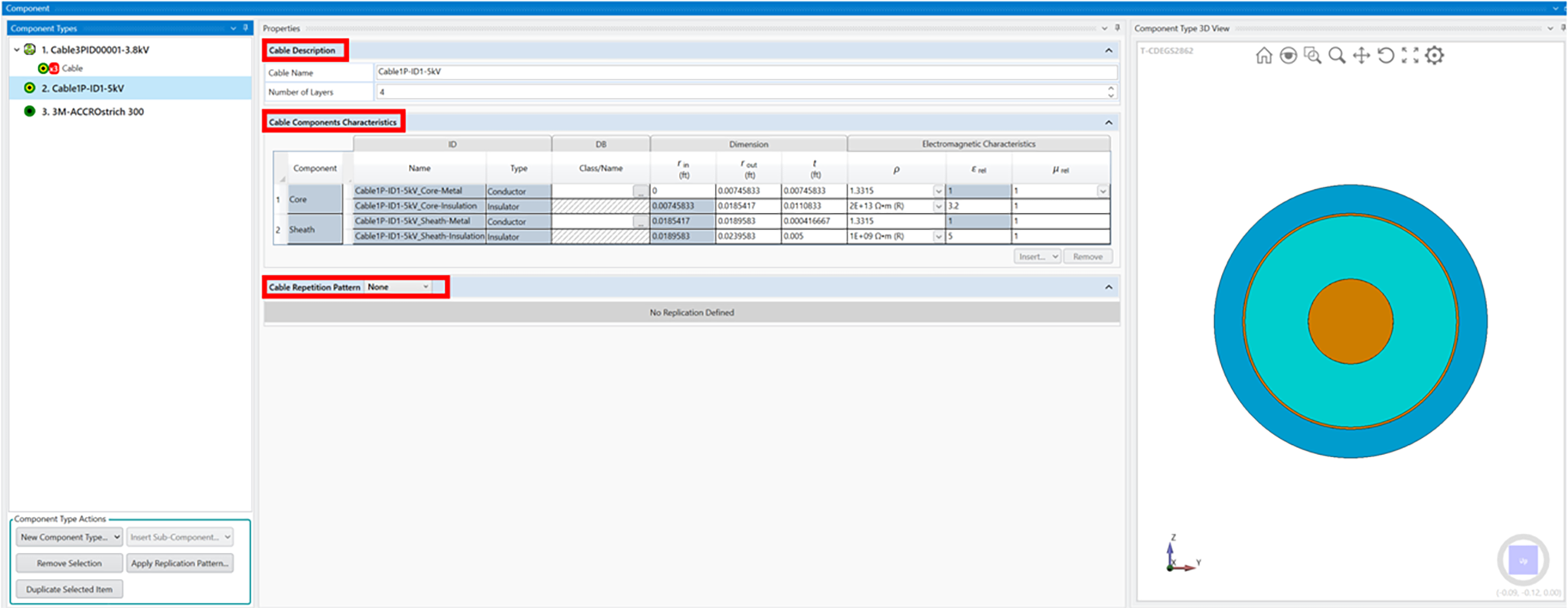

For concentric cables, different properties have their own expanders in the Properties panel, namely Cable Description, Cable Components Characteristics, and Cable Repetition Pattern.
